Rock sample coring machine is specialized tools used to extract cylindrical core samples from rock formations for geological surveys, mining exploration, construction works, and other purposes. This kind of rock sample drilling equipment is designed to drill into the rock and retrieve samples that can be analyzed for their composition, structure, and other properties.

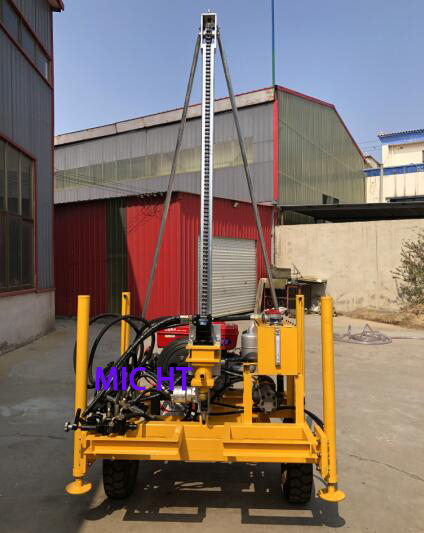

DHC100 Coring Rig | |
Working Way | Hydraulic, two hydraulic systems,hydraulic transmission |
Power Source | Diesel powered |
Power | 25 Hp |
Max Drilling Depth | 100 m |
Max Drilling Diameter | 200 mm |
Drilling Angle | 0°- 90 ° |
Rotation Speed | 0-300 r/min (continuously variable transmission) |
Max Torque | 600 Nm |
Max Lifting Force | 3 T |
Machine Height | 2.6 m |
Weight | 500 kg |
Dimension | 1400 x 1250 x 2600 mm |
