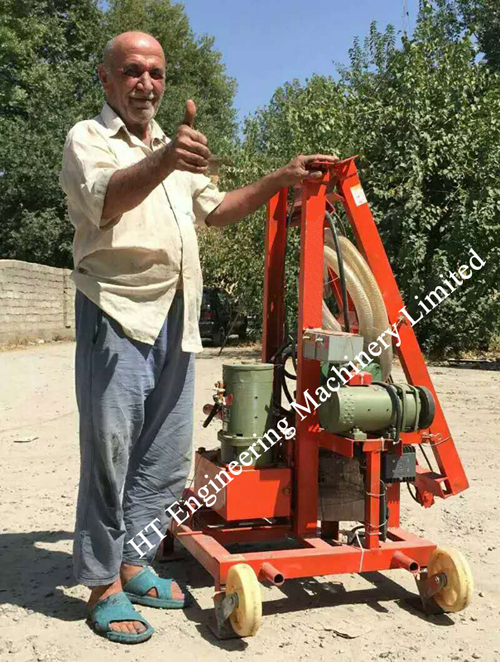

Mini Water Well Borehole Drilling Rig--E80&100 (Electricity)

Backyard Cheap Homemade Hand Water Well Drilling Digging Equipment

Description: Affordable Water Well Drilling Equipment – Reliable and Cost-Effective Solutions.
INQUIRY EMAIL

Affordable Water Well Drilling Equipment – Reliable and Cost-Effective Solutions:

Looking for cheap water well drilling equipment? Our high-quality, budget-friendly options provide everything you need for efficient well drilling without breaking the bank. Whether you're a homeowner or small-scale contractor, we offer hand well digging equipment that is easy to operate and designed to help you drill water wells in your backyard or property with minimal effort.
Our backyard well drilling equipment is perfect for those seeking to drill wells in residential settings. Compact, portable, and affordable, this equipment makes it simple to access water for irrigation, drinking, or other uses. We understand the importance of affordable solutions, and our equipment ensures you get top performance at a fraction of the cost of larger, more complex rigs.

Cheap Water Well Drilling Equipment:

Model	E80	E100
Principle	Positive Cycle	Positive Cycle
Electricity	Single Phase	Three Phases
Drive Motor	2kw (60V DC)	3kw
Lift Mtor	1.5kw (60V DC)	1.5kw
High Pressure Submerged Pump	2.2kw	2.2kw
Max Drilling Depth	80m	100m
Max Drilling Diameter	200mm	400mm
Drilling Pipe	42mm diameter, 1.5m/piece	50mm diameter, 1.5m/piece
Drilling Pipe Equipped	50m	50m
Drilling Bit Equipped	2 pieces	2 pieces
Drilling Bit Equipped	One small bit (60mm,90mm) + one big bit (160-500mm)
Other Parts For One Complete Machine	High pressure submerged pump-1 unit
	High pressure water pipe-5m
	Voltage transformer(change 220V AC to 60V DC)
	Only used for E80-P1 model
	Tools, seat, oil seal, English manual, etc
