Inquiry:
Explore our DTH hammers designed for efficient drilling operations. Whether you need a DTH hammer or a down the hole hammer, we offer high-quality tools built for durability and performance. Our down the hole hammers for sale come at competitive prices, ensuring you get the best value for your investment. Browse our selection of DTH hammers for sale to find the right fit for your drilling needs. From DTH water hammers to DTH down the hole hammers, we have the equipment to help you achieve optimal drilling results.

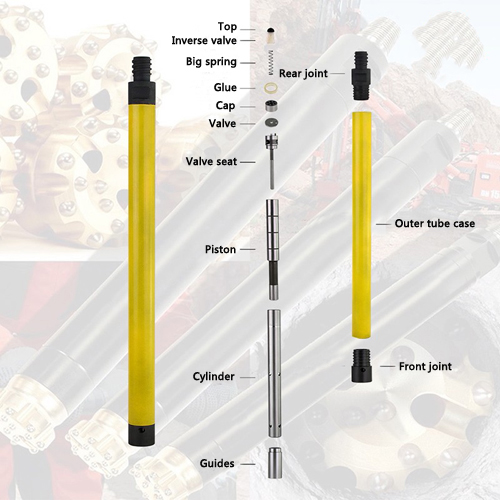

Details of low pressure dth hammer:
Technical Parameters of dth hammer:
Model | Chief（Without drill head） | 628（mm） |
HT-50A | Total（Without drill head） | 5.5kg |
Exterior diameter | 46（mm） | |
Drill bit specifications | HT50 | |
Diamond | 50（mm） | |
Rear joint thread | T38X8方牙 | |
Available work wind pressure | 0.4-0.7MPa | |
Air consumption | 3.5-4m³/min | |
Drilling head handle size | 29（mm） |
Model | Chief（Without drill head） | 676（mm） |
HT-D56 | Total（Without drill head） | 5.8kg |
Exterior diameter | 46（mm） | |
Drill bit specifications | HT56 | |
Diamond | 50（mm） | |
Rear joint thread | T38X8 Square teeth | |
Available work wind pressure | 0.4-0.7MPa | |
Air consumption | 3.5-4m³/min | |
Drilling head handle size | 29（mm） |
Model | Chief（Without drill head） | 745（mm） |
HT-65A | Total（Without drill head） | 11.5kg |
Exterior diameter | 61（mm） | |
Drill bit specifications | HT65 | |
Diamond | 65（mm） | |
Rear joint thread | T42X8 Square teeth | |
Available work wind pressure | 0.5-0.7MPa | |
Air consumption | 4.5-6m³/min | |
Drilling head handle size | 36.5（mm） |
Model | Chief（Without drill head） | 777（mm） |
HT-60A | Total（Without drill head） | 7kg |
Exterior diameter | 53（mm） | |
Drill bit specifications | HT60 | |
Diamond | 60（mm） | |
Rear joint thread | T42X8 Square teeth | |
Available work wind pressure | 0.4-0.7MPa | |
Air consumption | 4-5m³/min | |
Drilling head handle size | 35.5（mm） |
Model | Chief（Without drill head） | 811（mm） |
HT-76A | Total（Without drill head） | 14kg |
Exterior diameter | 67（mm） | |
Drill bit specifications | HT76 | |
Diamond | 76-80（mm） | |
Rear joint thread | T48X10 Square teeth | |
Available work wind pressure | 0.5-0.7MPa | |
Air consumption | 5-7m³/min | |
Drilling head handle size | 43（mm） |

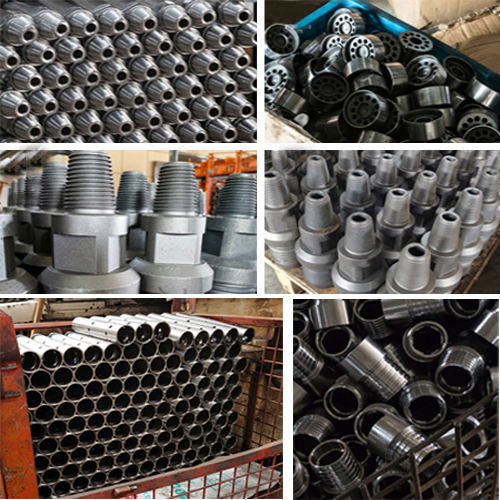

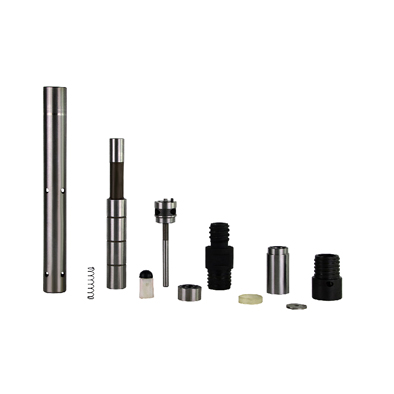

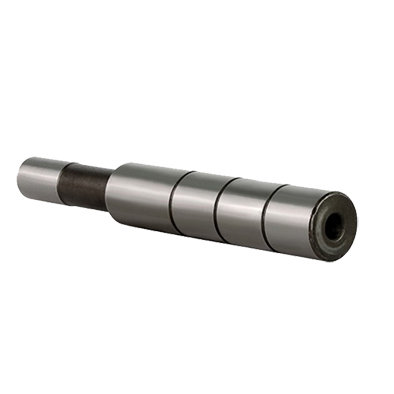

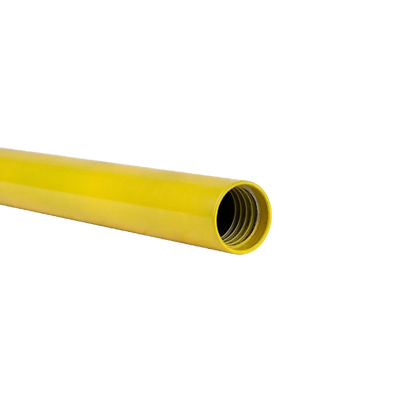

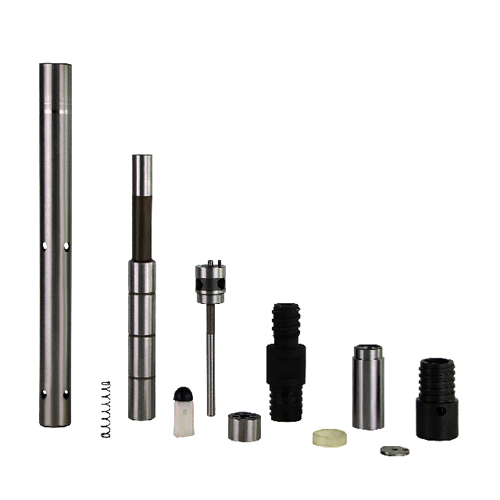

Photos of down the hole hammer for sale：

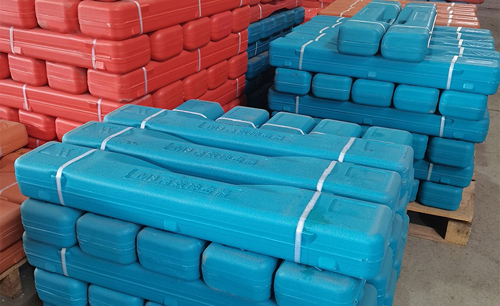

Package of DTH down the hole hammer:
Looking for the best DTH hammer prices? We offer top-quality DTH hammers for sale that deliver exceptional performance and durability. Our selection includes specialized DTH water hammers designed for efficient water well drilling, you can contact us by the following ways:
Mobile (Whasapp/Wechat): 008618638556116
