Model | FY-150 | |
Total weight | T | 3 |
Dimension | mm | 3850*1560*2050 |
Drilling diameter | mm | 100-219 |
Drilling depth | m | 130 |
One-timedrillinglength | mm | 2300 |
Walking speed | km/h | 3 |
Climbing ability | Max. | 30° |
workingairpressure | Mpa | 1.45-2.5 |
Air consumption | m³/min | 15-29 |
Drill pipe diameter | mm | φ76 φ89 |
Drill pipe length | m | 1.5,2.0 |
Lift force | T | 6 |
Power | kw | 23 |
Rotation speed | rpm | 40-65 |
Torque | N.m | 2200-3000 |
Mobile (Whasapp/Wechat): 008618638556116
Email: htrigchina@gmail.com andy@htwaterwelldrillingrig.com
Facebook:

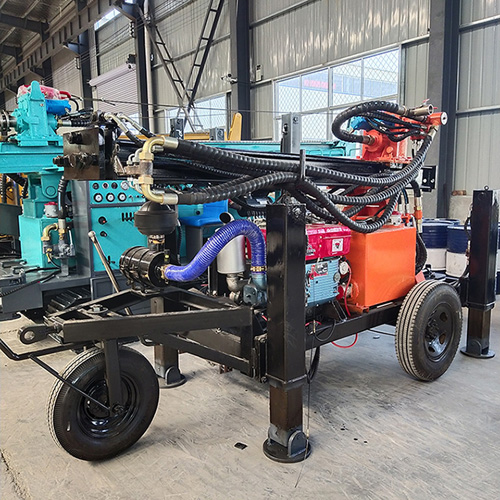

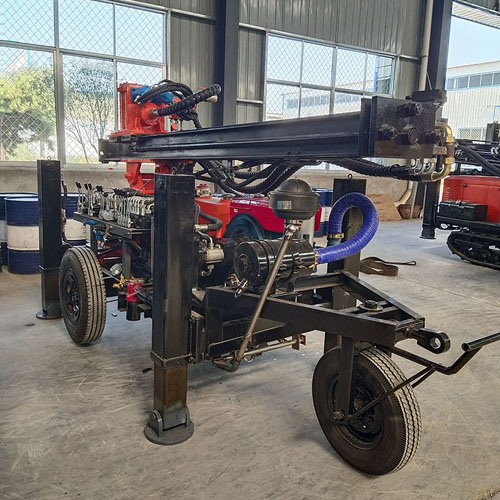

Water Well Drilling Rig Machine
