Rotary Water Well Drilling Machine Fully Hydraulic--DH200

Can Bore Hole In Stones For Mining Drill Rig Quarry

Description: HT-W180 water well drilling machine, bore hole mining drill rig for quarry.
INQUIRY EMAIL

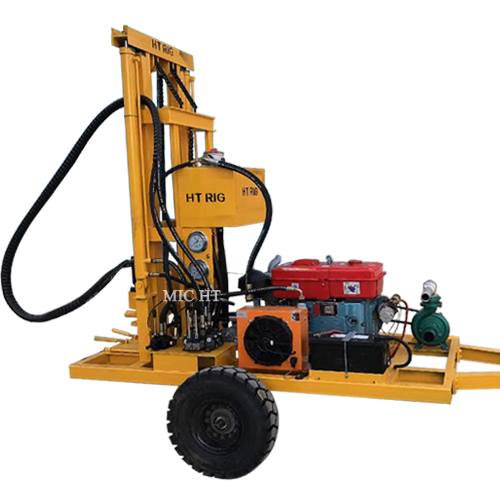

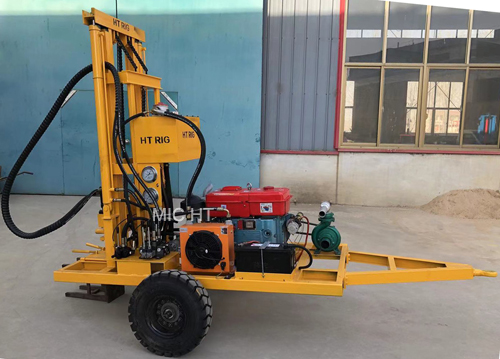

HT-W180 Water Well Drilling Machine 180: Efficiency for Well Drilling and Quarry Mining:

The HT-W180 Water Well Drilling Machine 180 is a top-tier solution designed for water well drilling and quarry mining operations. This powerful bore hole mining drill rig for quarry offers reliable performance for deep drilling, ensuring precision and efficiency even in tough terrain. Its robust construction and hydraulic technology make it versatile, adapting seamlessly to various ground conditions. With the HT-W180, achieve high-quality and accurate results for all your drilling projects.

Water Well Drilling Rig 180:

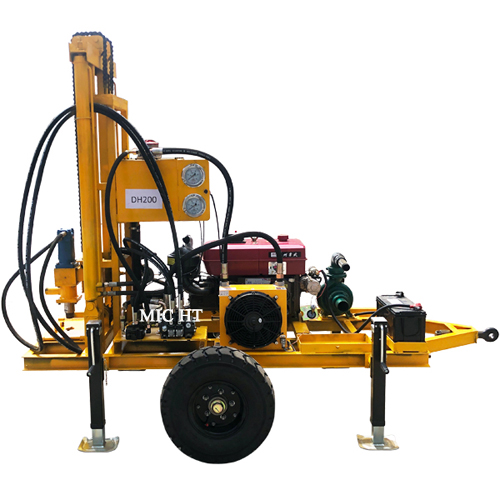

Model	DH200
Full Hydraulic Working Way	Double hydraulic systems
Max Drilling Depth	210m
Max Drilling Diameter	500mm
Max Torque	900 Nm
Max Lifting Force	100 Kn
Weight	1400Kg
Dimensions	310017002600 Mm (with wheels) 310017002150 (without wheels)
Power Source	Diesel engine powered
Main Machine Power	25 Hp
Drilling Angle	0°- 90 °
Rotation Speed	0-150 r/min (Continuously Variable Transmission)
