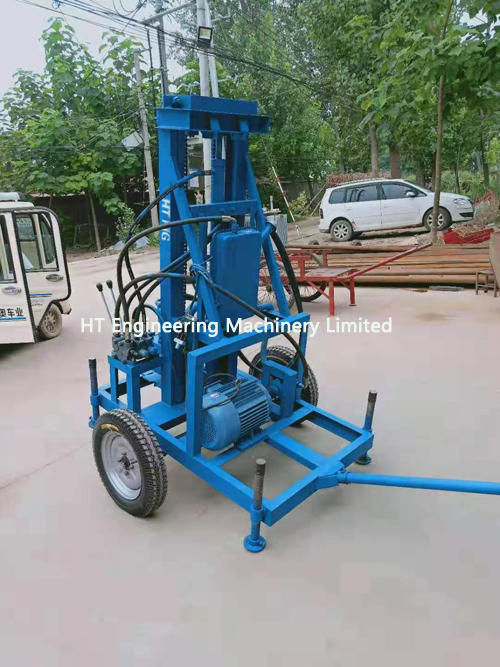

Small Hydraulic Electrical Drilling Rig For Water Well

HT Brand Small Electrical Drilling Rig For Water Well

Description: HT is a professional manufacturer for small electrical drilling rig for water well.
INQUIRY EMAIL

HT is a professional manufacturer for small electrical drilling rig for water well.

Model	EH100-P1	EH120-P3
Motor Power	3kw, 220-240V, 50Hz (single phase, civil electricity)	4kw, 380-400V, 50Hz (3 phases, industrial electricity)
High Pressure Submerged Pump	2.2kw, 220-240V, 50Hz (single phase, civil electricity)	4kw, 380-400V, 50Hz (3 phases, industrial electricity)
Max Drilling Depth	100m	120m
Max Drilling Diameter	400mm	420mm
Principle	Positive Cycle
Drilling Pipe	51mm diameter, 1.5m/piece
Drilling Pipe Equipped	81m (51mm diameter, 1.5m/piece, 54 pieces)
Alloy Steel Drilling Bit	one small bit (60mm-100mm) + one big bit (110-400mm)
High Pressure Submerged Pump	1 unit
Other Parts For One Complete Machine	High pressure water pipe-5m
Other Parts For One Complete Machine	Tools, seat,oil seal, English manual, Etc
